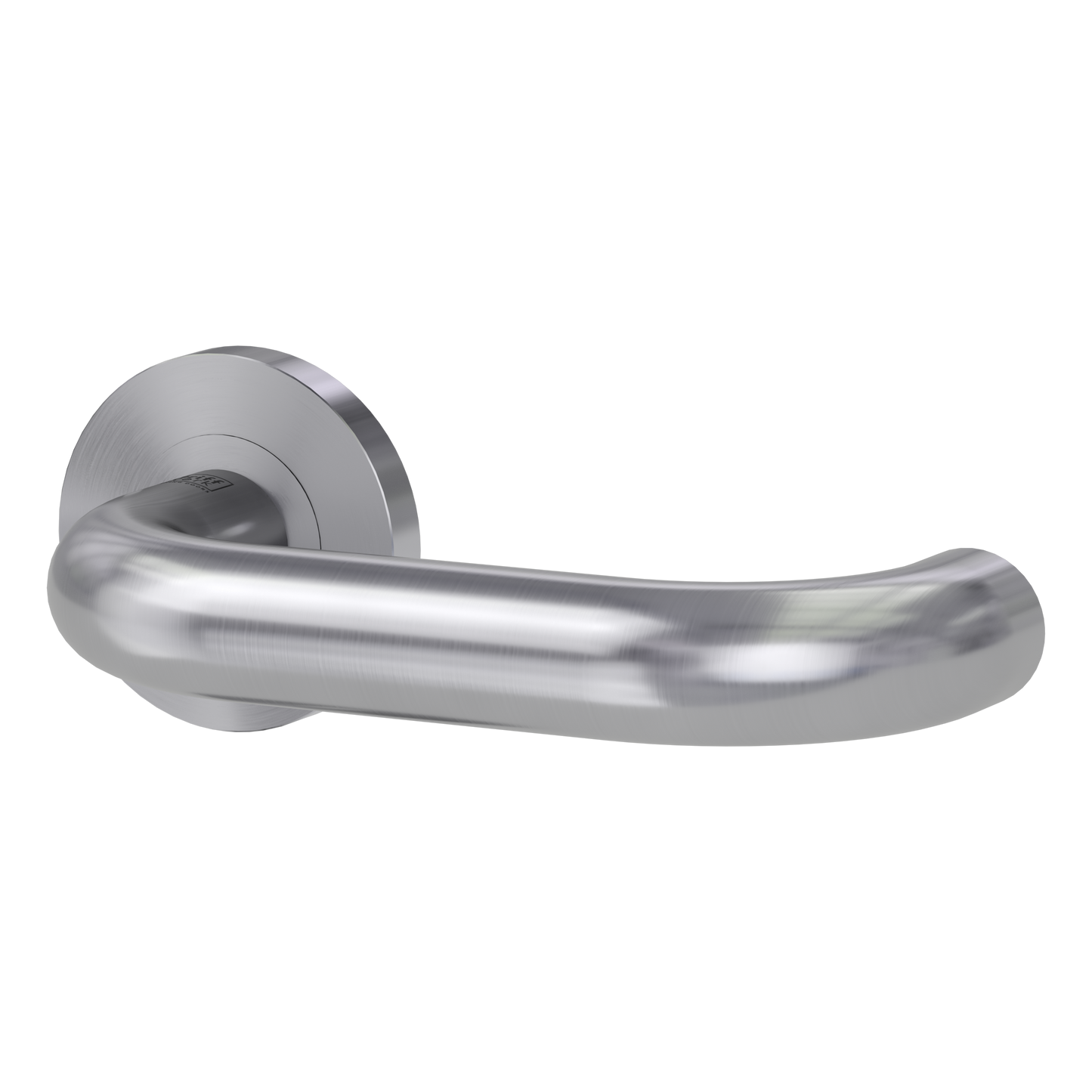

ALESSIA PROFESSIONAL

ALESSIA PROFESSIONAL

U-SHAPE: FROM THE STABLE TO THE SKYSCRAPER

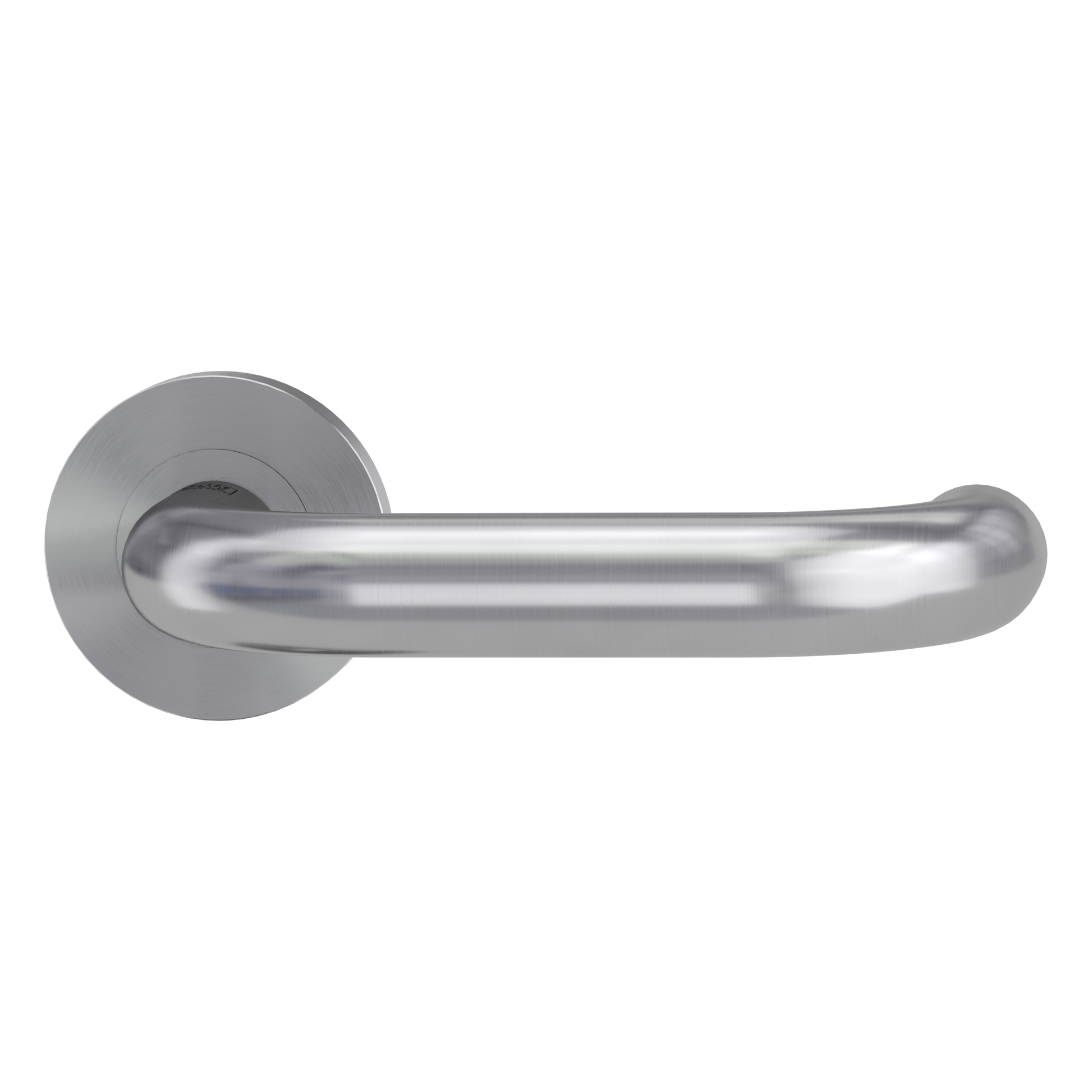

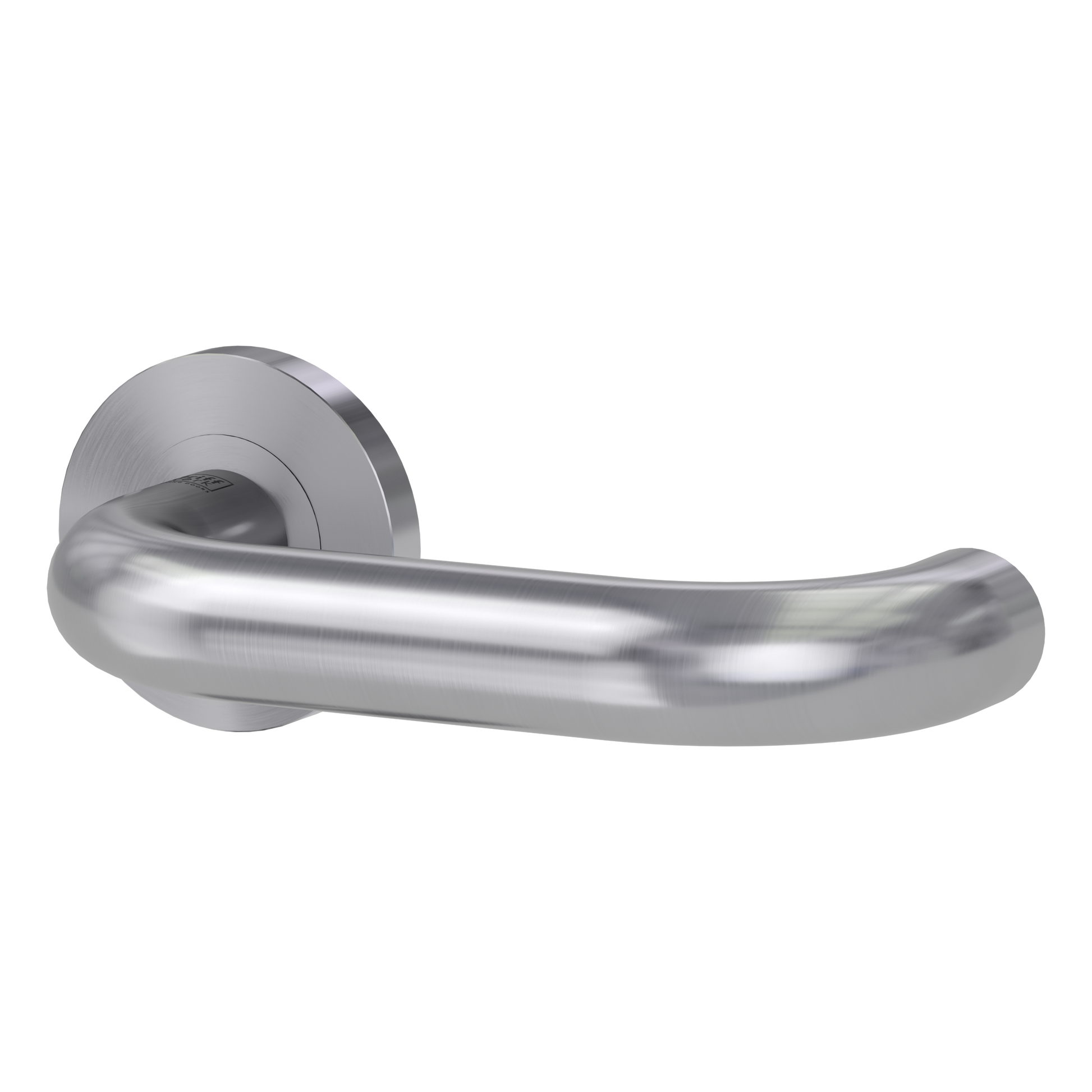

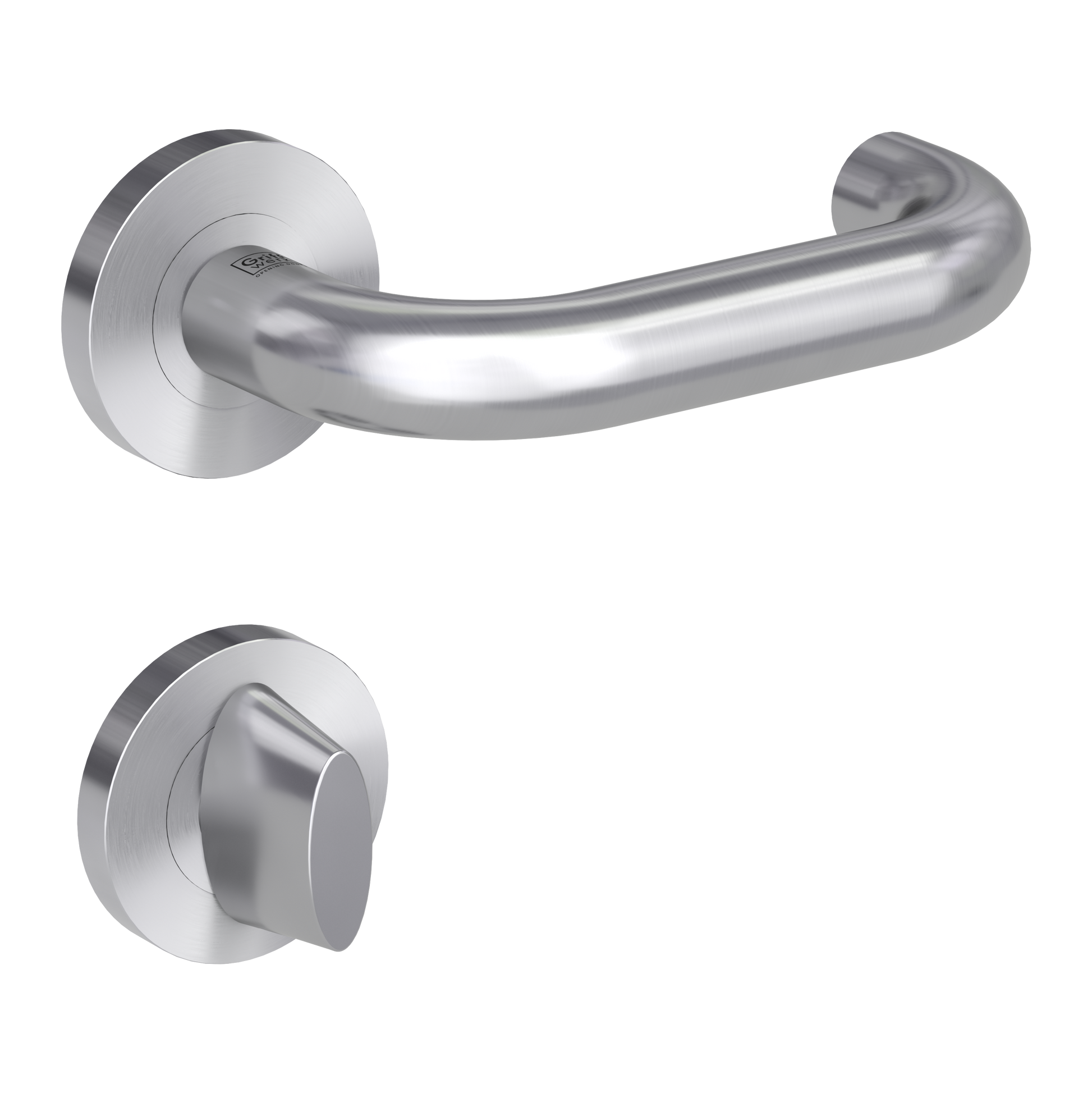

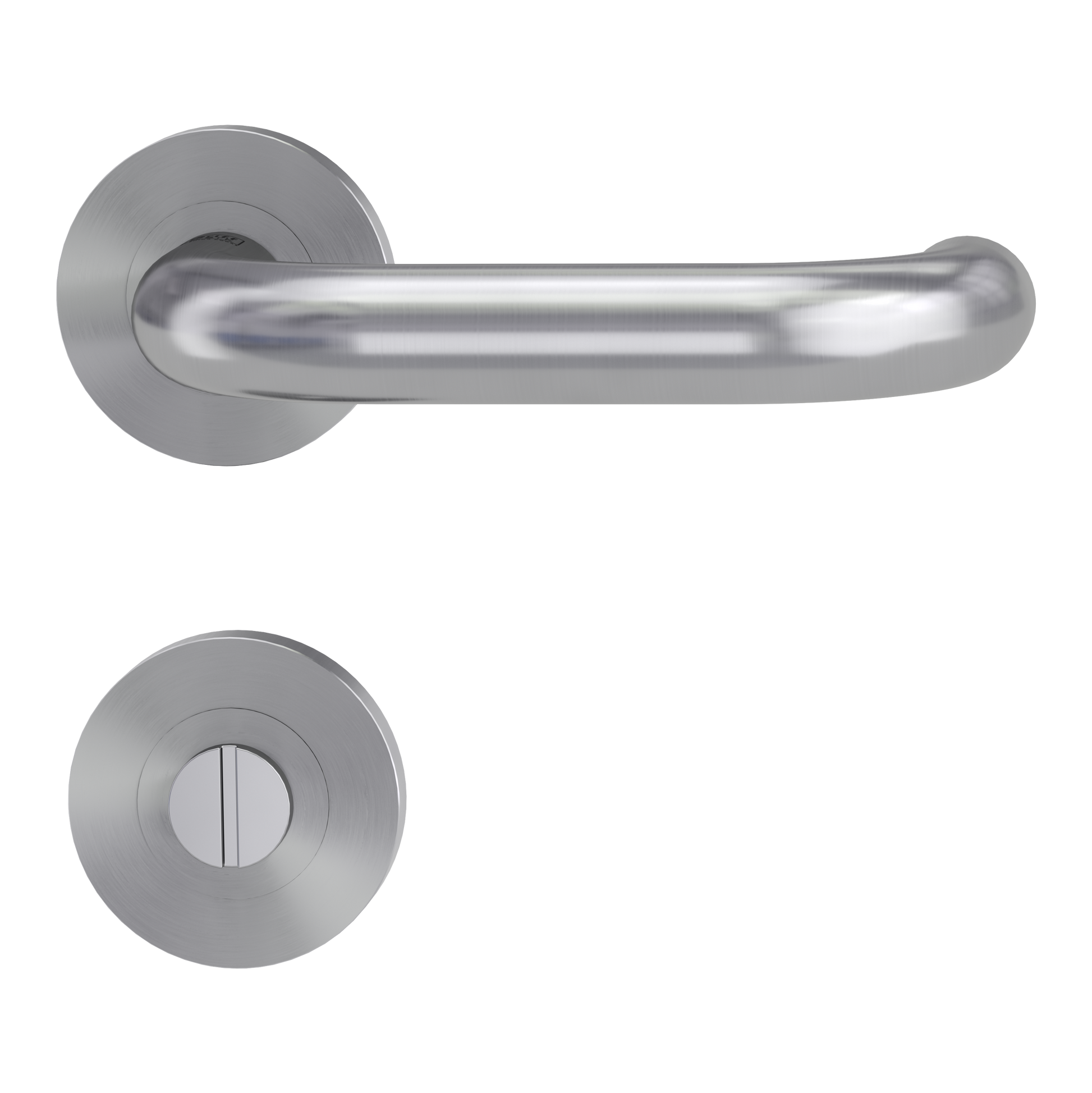

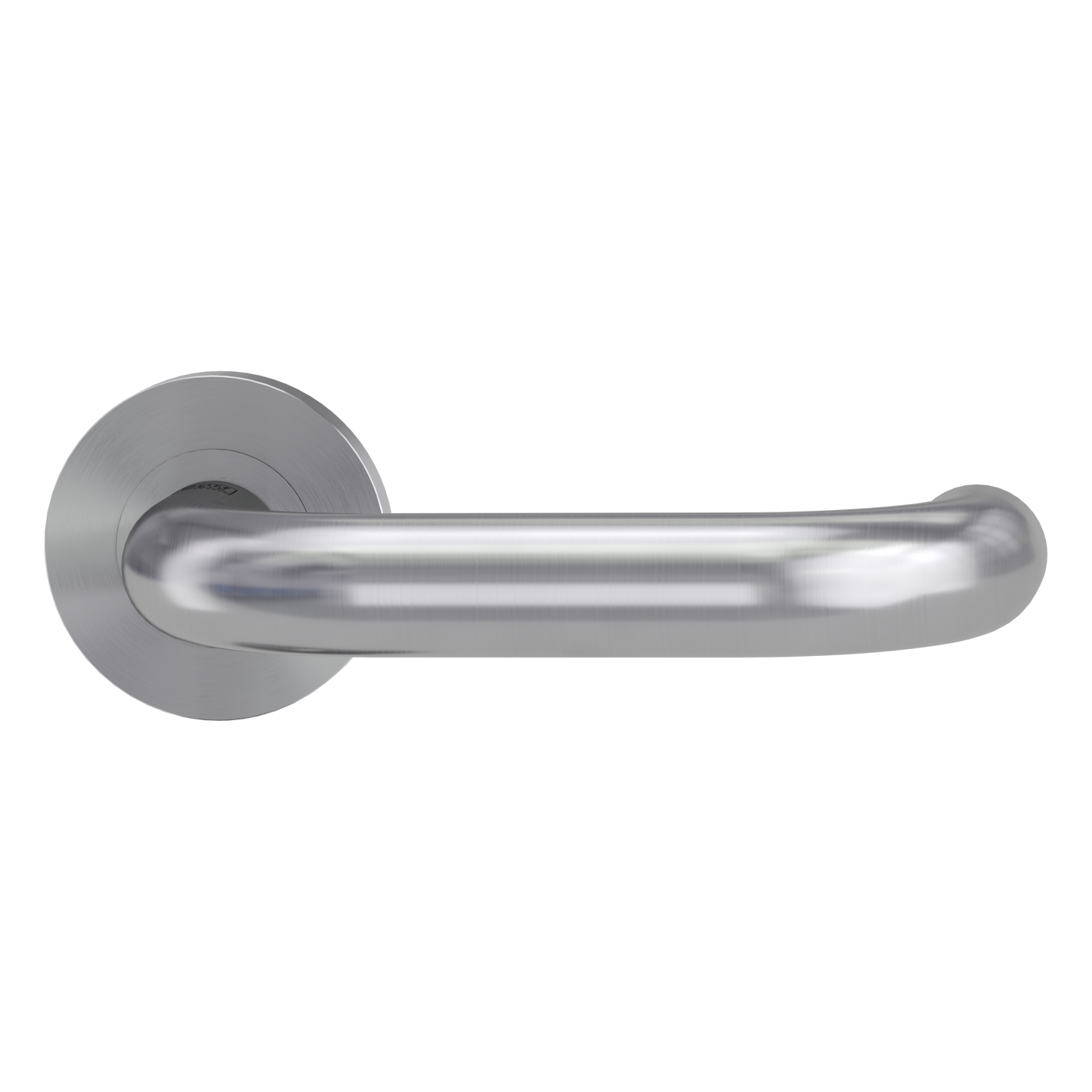

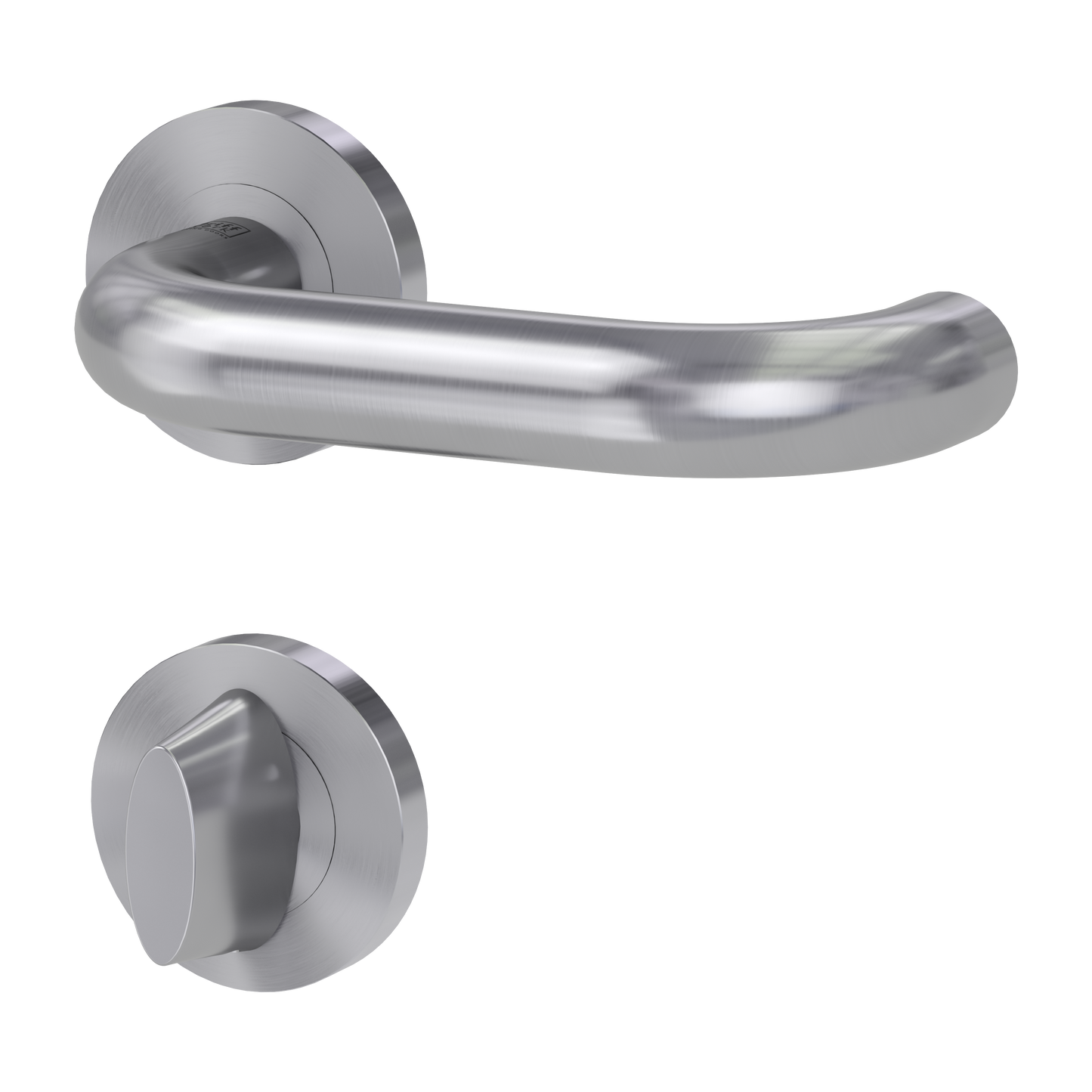

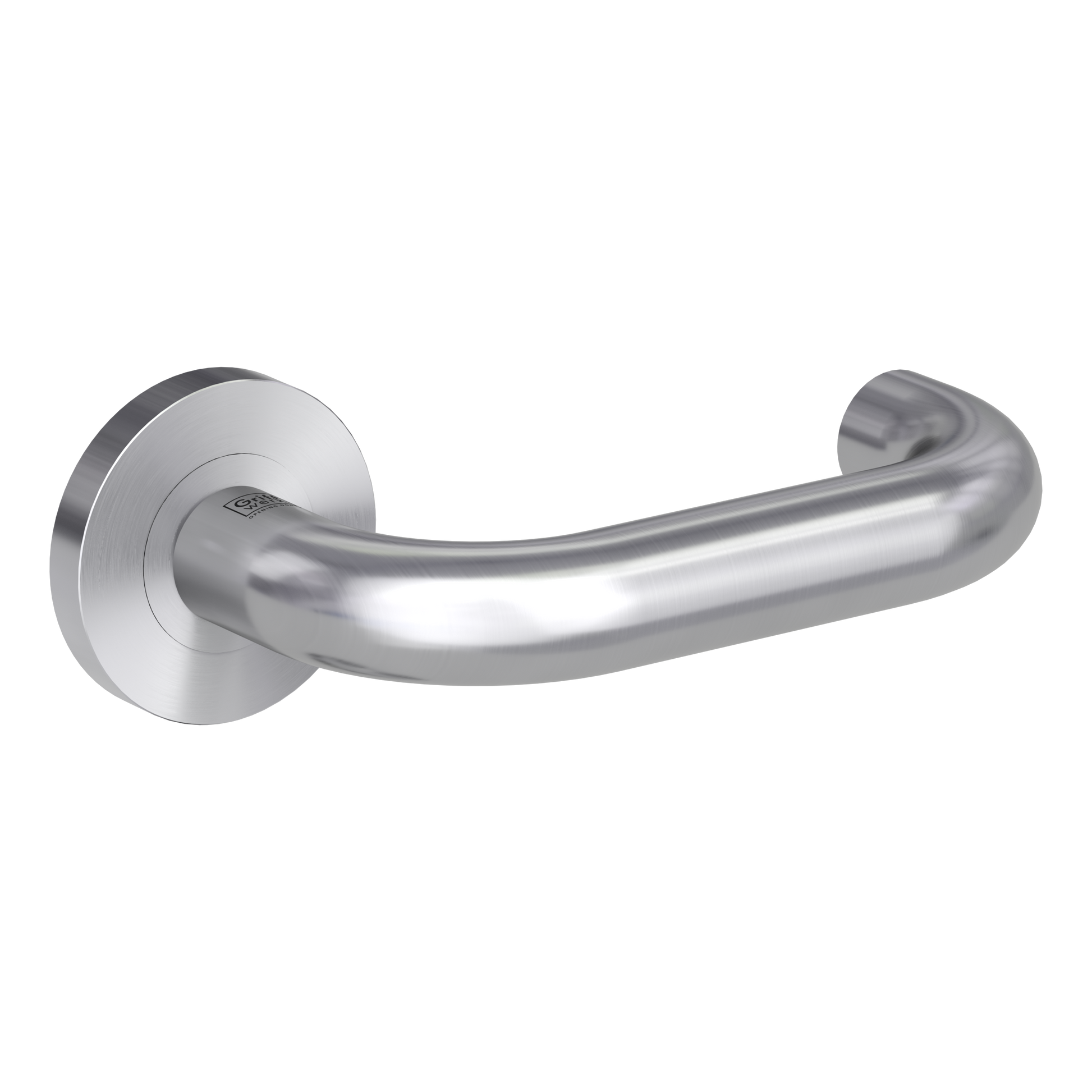

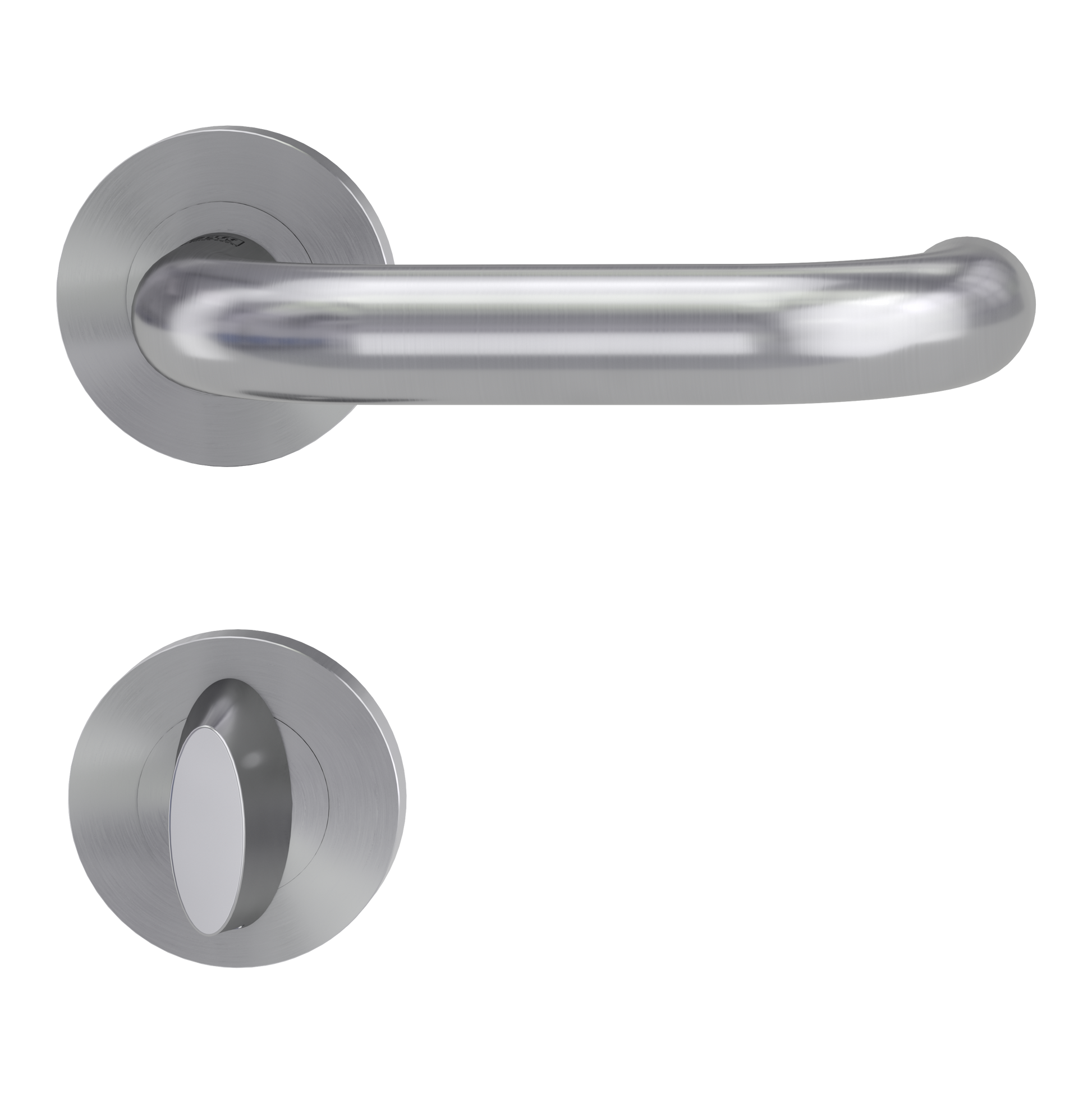

Door handles with ends that turn in towards the door were often used in stables so that reins and leashes would not become caught. These closed handle shapes, such as the ALESSIA, are also prescribed for many public buildings. PROFESSIONAL LINE fittings offer a complete range for professionals for commercial fit-outs.

The Professional Line units convince with a rosette height of only 8 mm, delicate joints around the screw-on rosettes, smallest radii and the PROFESSIONAL LINE‘s specific and unmistakable Premium Finish. High-quality equipment details such as the two lifting springs and a sub construction of stainless steel (not plastic) supplement the offered range.

• Latch key suspended irmly pivoted on the single-part stainless steel clip-on rosette with integrated lifting mechanism
• Invisible anchor of the clip-on rosette on the door leaf by plastic subconstruction
• Plain bearing for permanent, smooth and silent function without maintenance effort
• Fitting with M4 screws
• Handle safety pin screwed in invisibly from below and secured with threadlocker
• 8 mm eccentrically drilled hollow pin
• High quality stainless steel 1.4301
• Lever handle unit without visible screws/assembly or disassembly openings in the exposed area when installed
• For standard door thickness of 38-  45mm (1 1/8" - 1 3/4")
• Doors can be fitted with extension kits to accommodate door thicknesses of up to 75 mm (3")
