LUCIA PIATTA S

MATERIAL ACCENTS

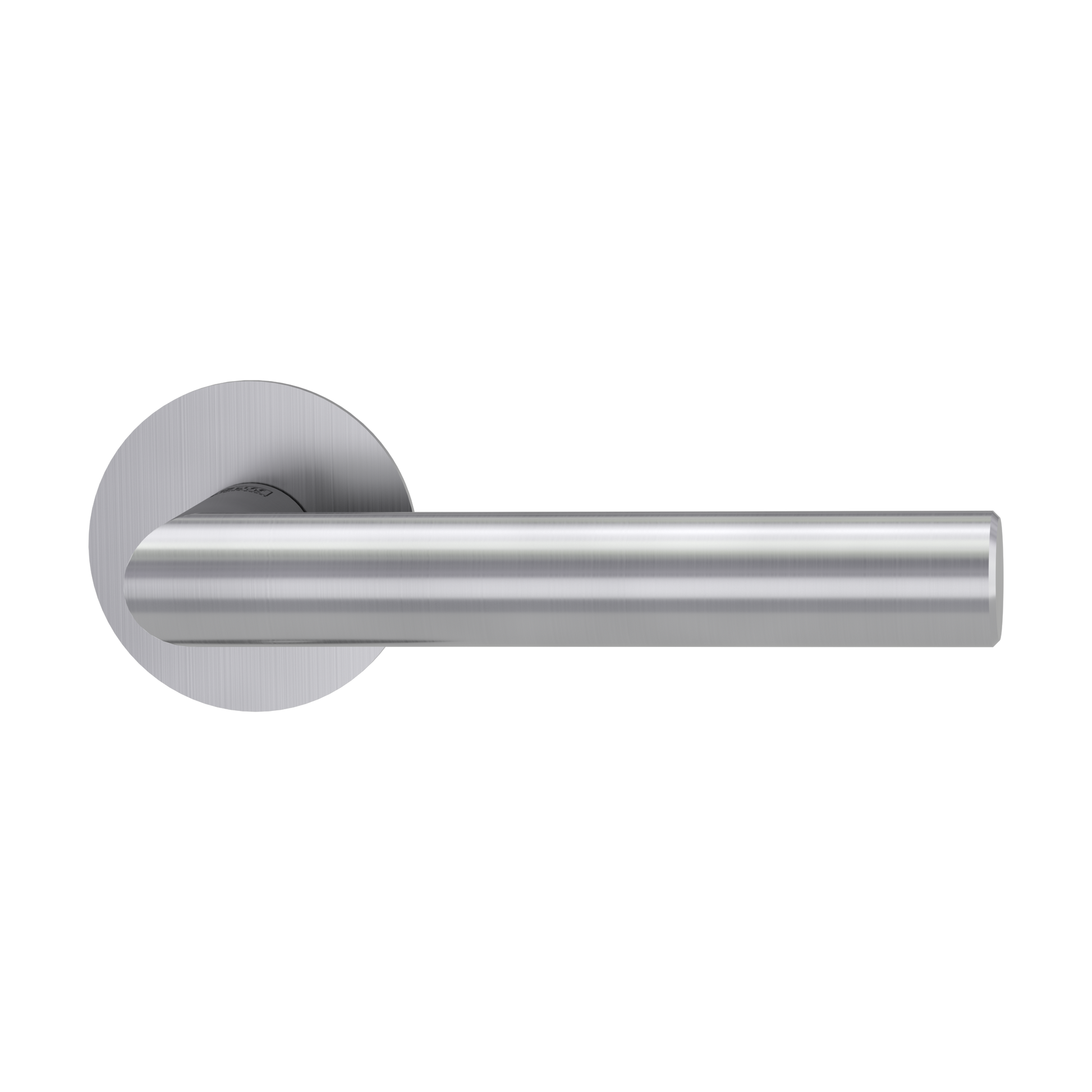

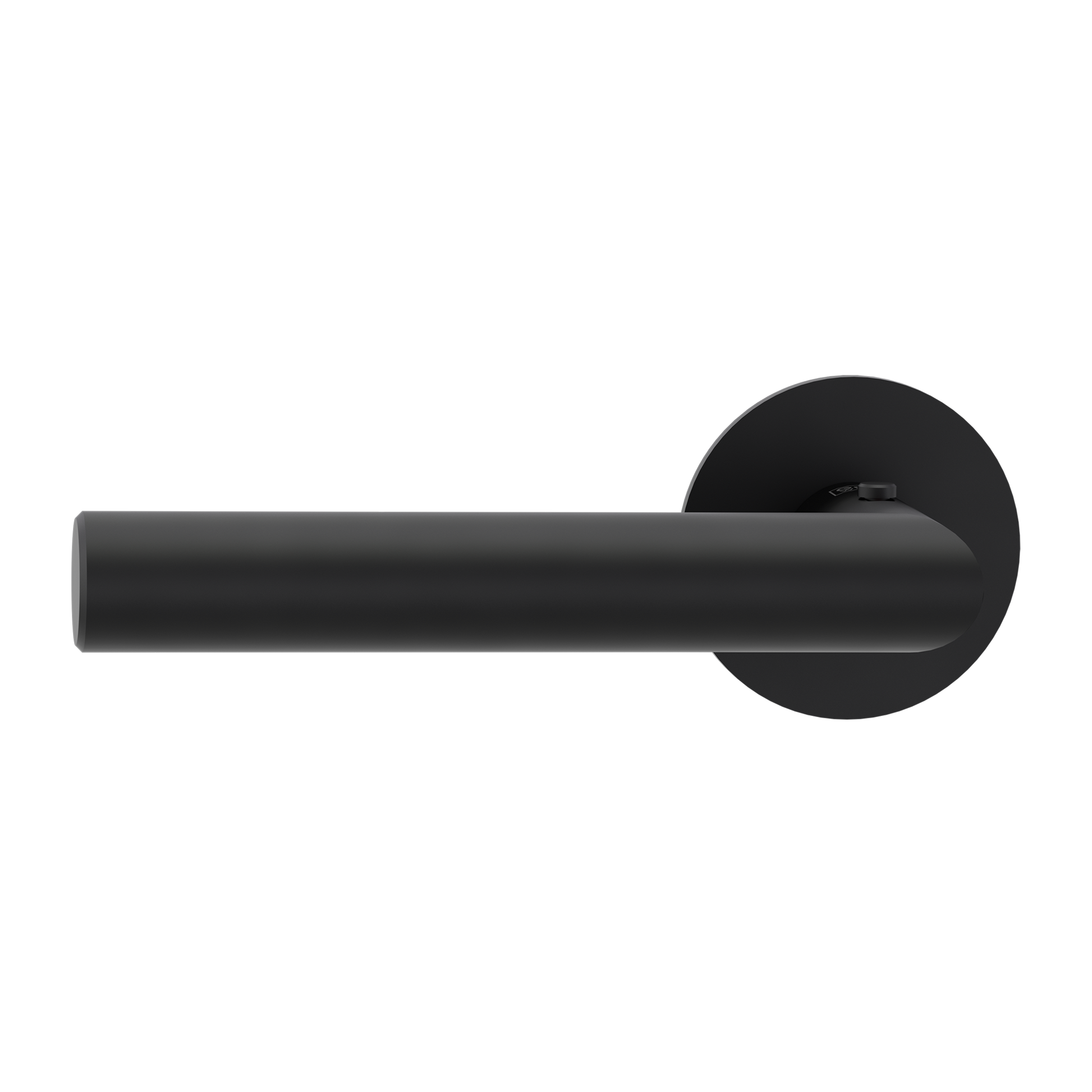

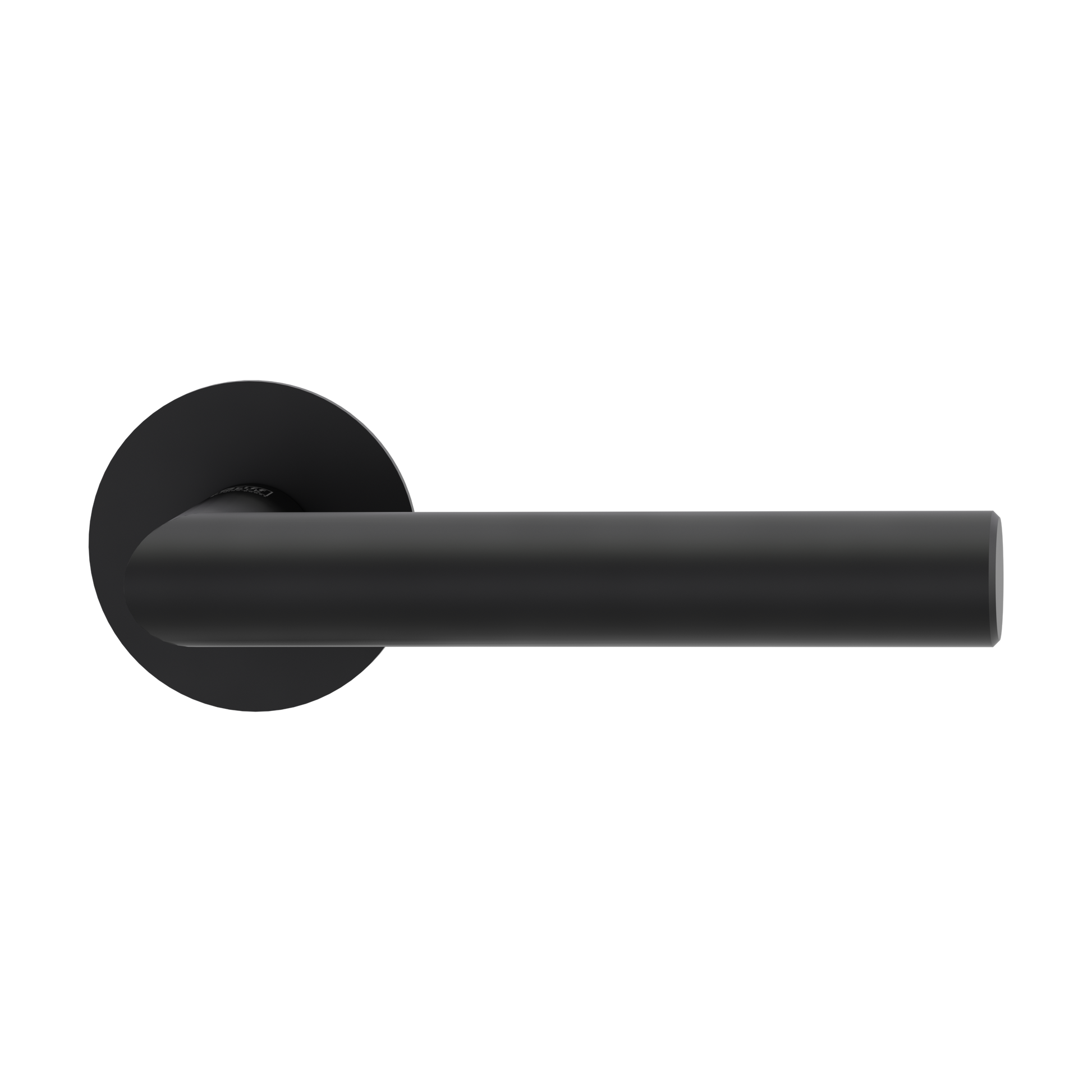

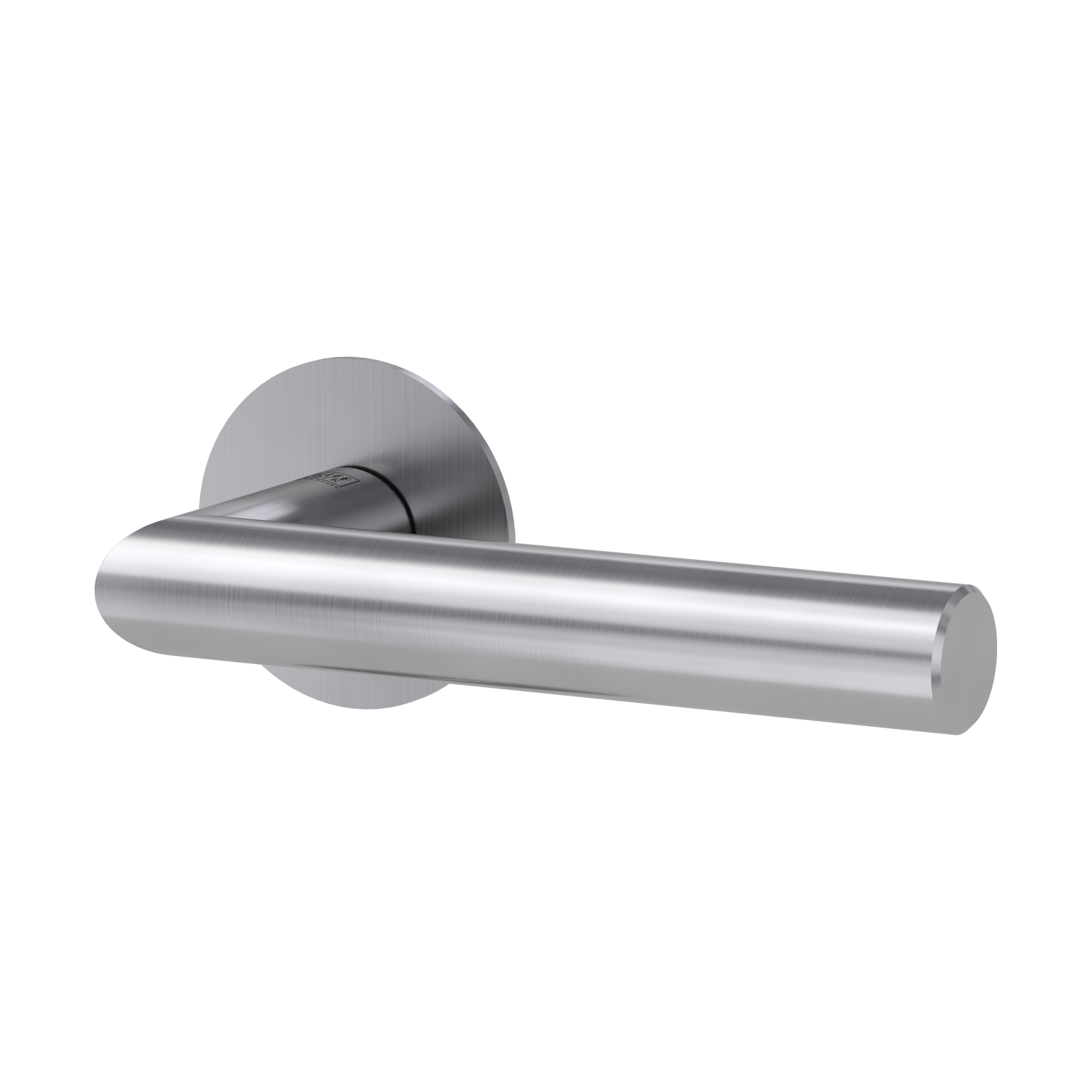

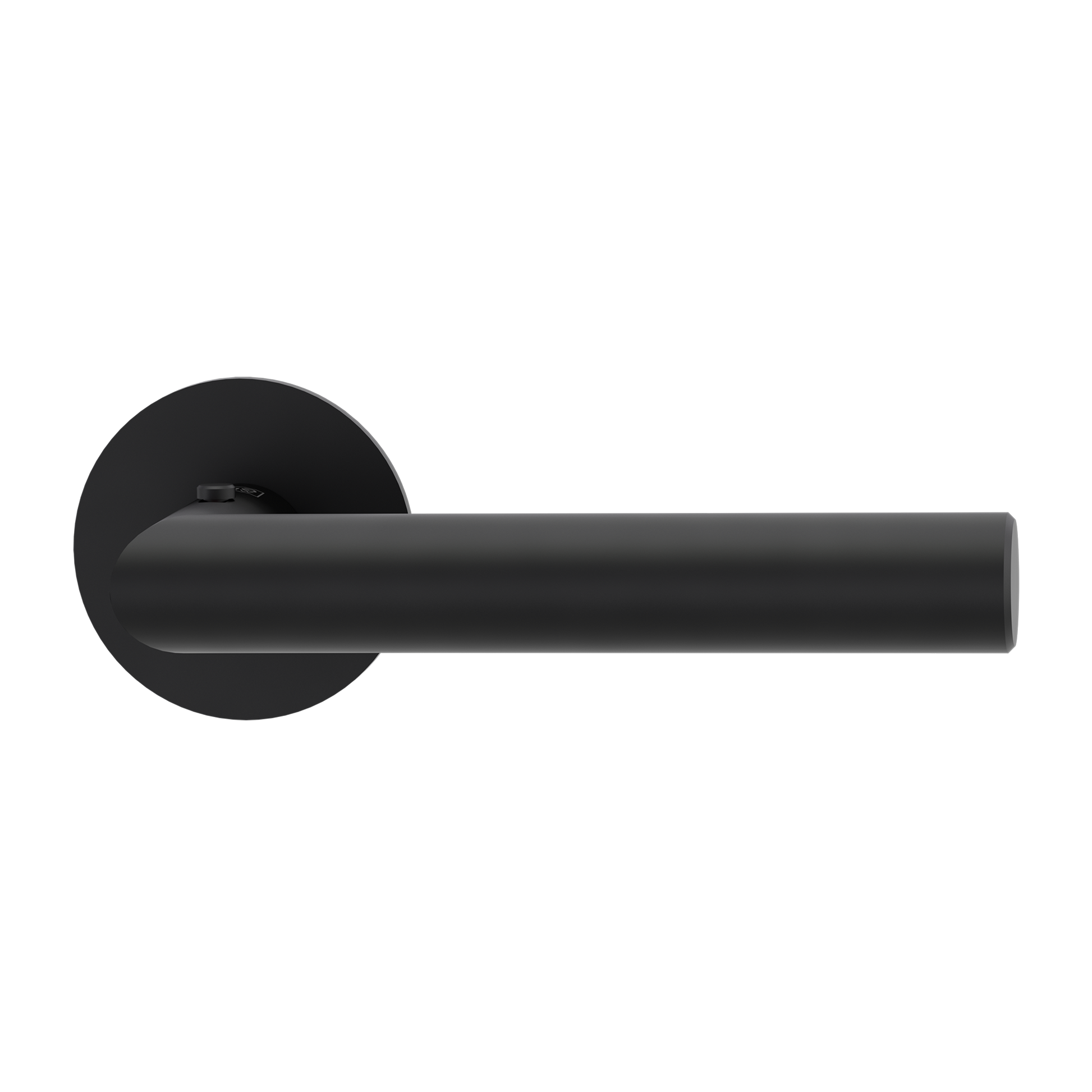

LUCIA is available in stainless steel and graphite black. “Our” black is a matte, very deep black. The coating is so resistant that even tools can be coated with it. Nevertheless, it is not sensitive to fingerprints. The clear differentiation between walls, architraves and doors is no longer necessary nor desired today. Materials and visuals are more coherent. The need for order and visual minimalism changes our living culture. A flush appearance therefore defines the fashion. PIATTA S dominates this design style. The rosette clings to the door like a disc. No special milling is even needed with PIATTA S.

• Lever handle one-sided swivel-mounted on ultrasmooth stainless steel rose (2.0mm) with integrated lifting mechanism

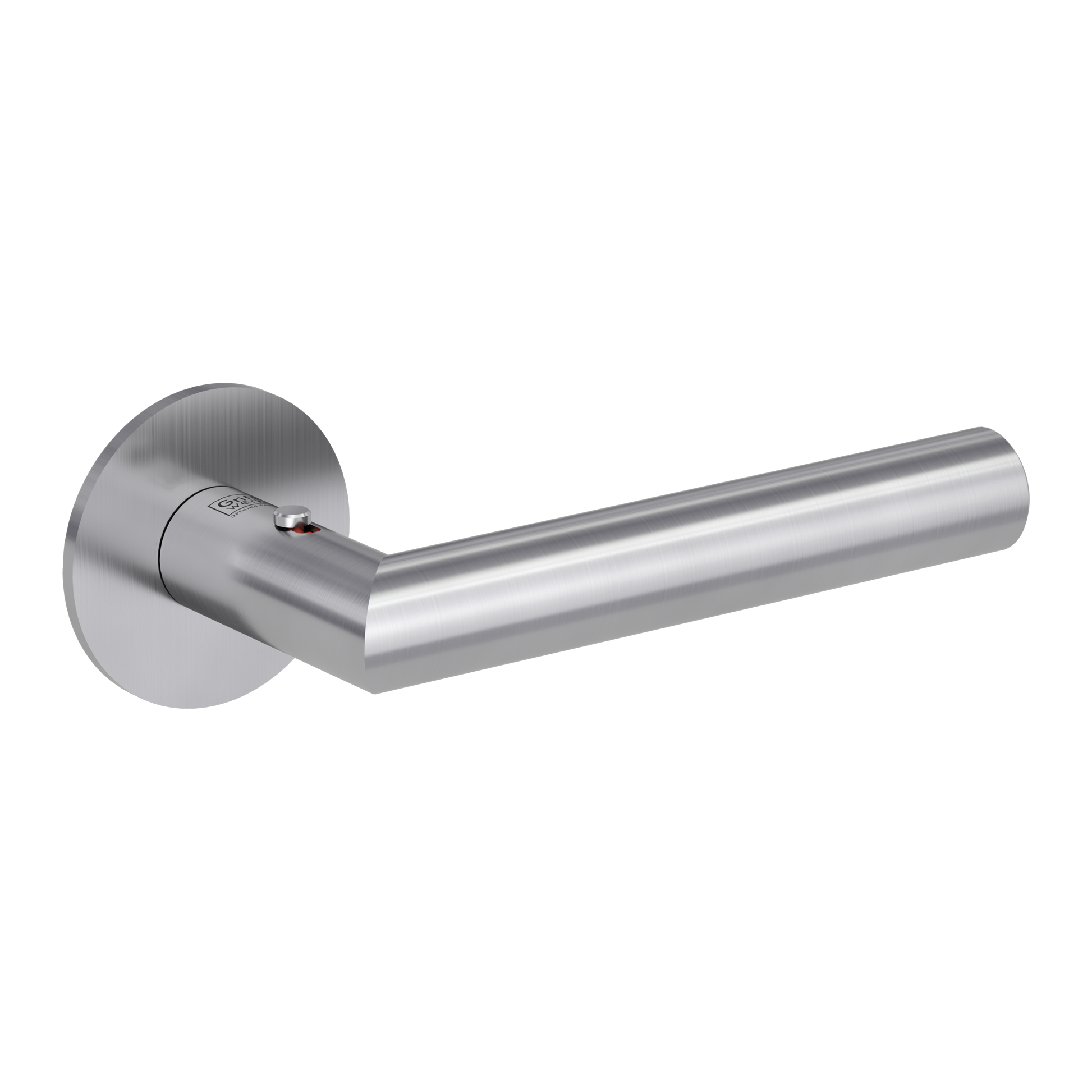

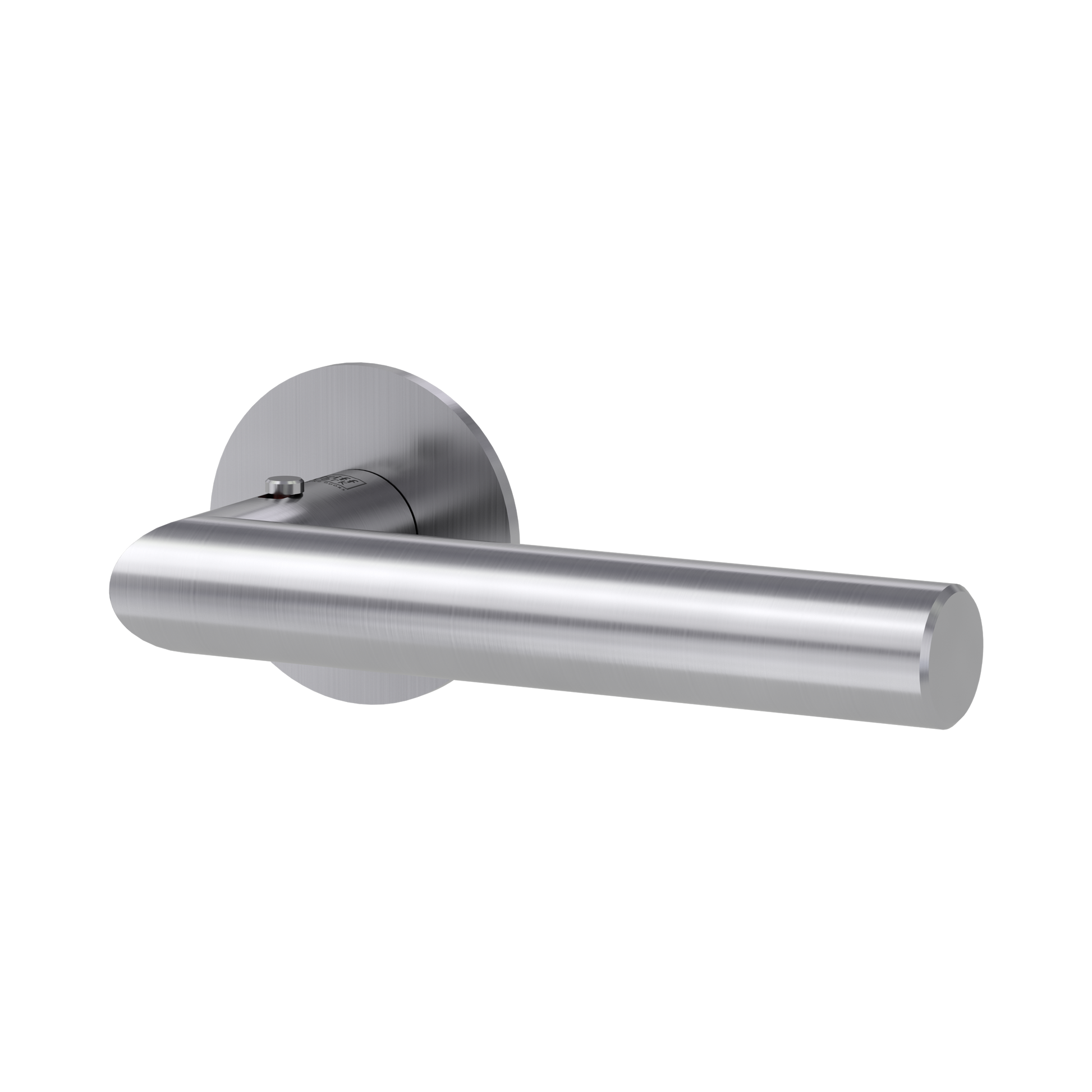

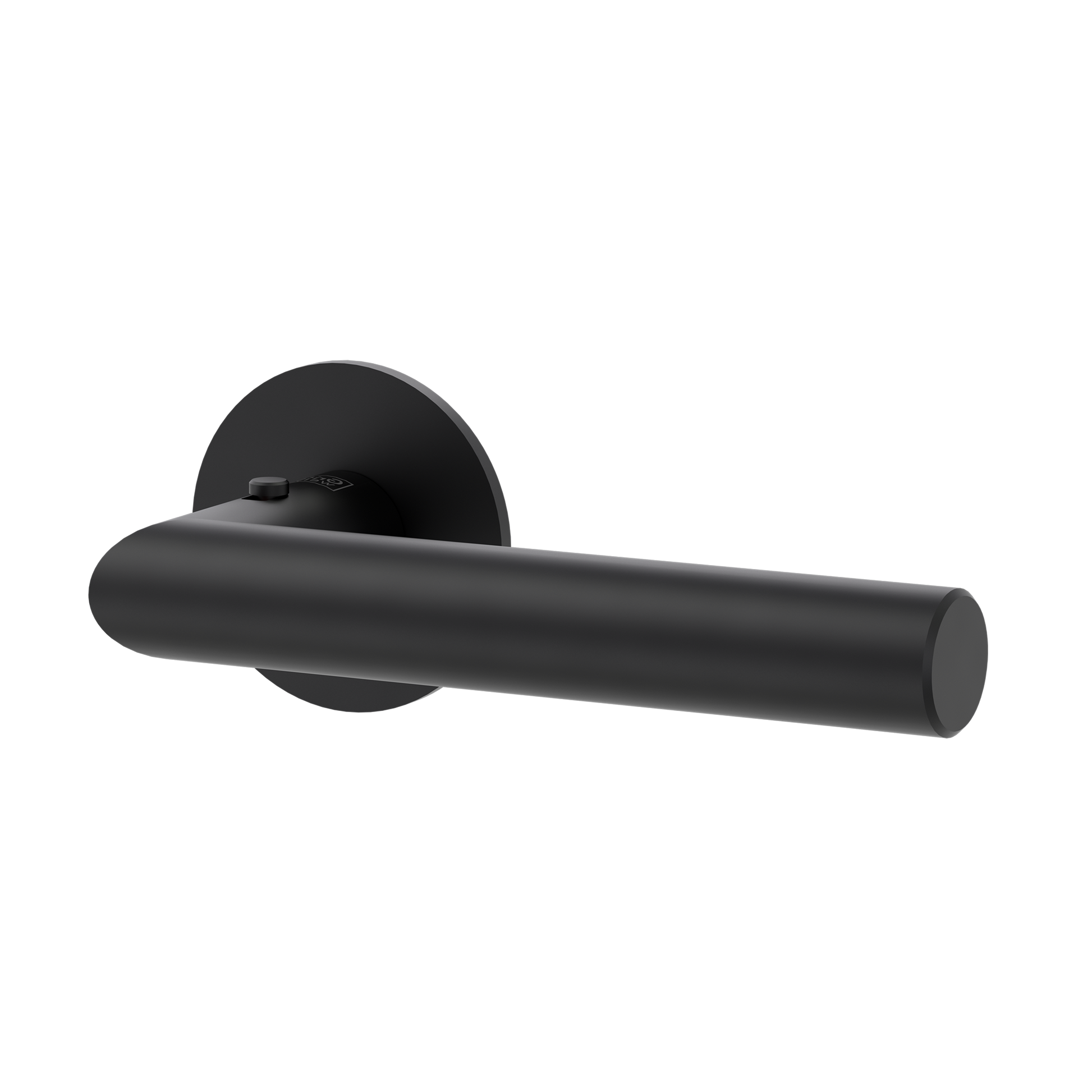

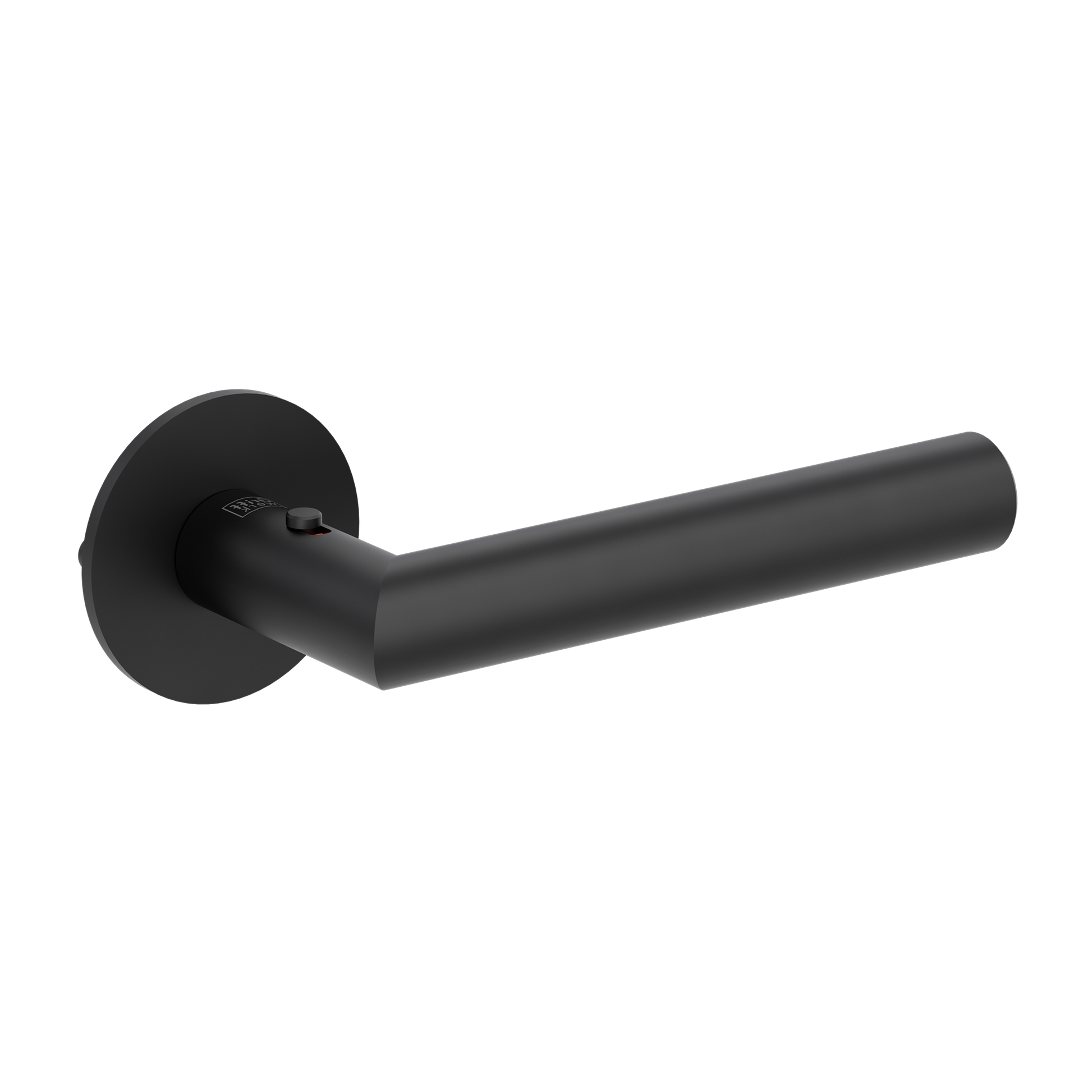

• In the handle integrated one-sided locking
  mechanism with emergency release, usable with
  standard mortise lock
• Slide bearing for durable, smooth, silent and maintenance-free operation
• One-sided attached with M4 screws
• Concealed grub screw inserted from below and secured with thread lock
• 8mm square spindle
• Built-in lever handle with no visible screws/fixing or removal holes in the visible

• For standard door thickness of 38 - 45mm     (1 1/8" - 1 3/4")
• Doors possible up to a door thickness of 75mm (3") with extension sets


Product Datasheet
