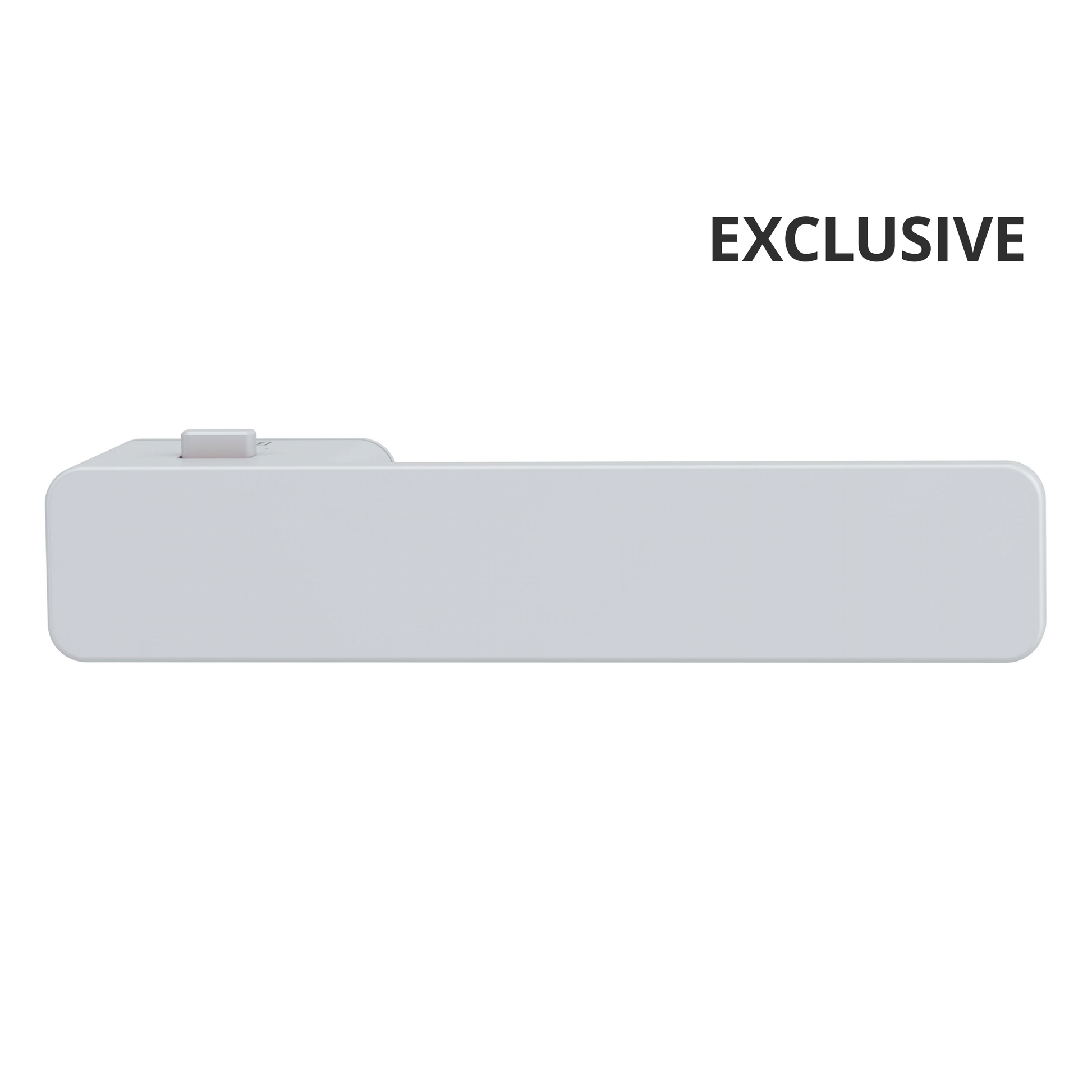

R8 ONE Exclusive

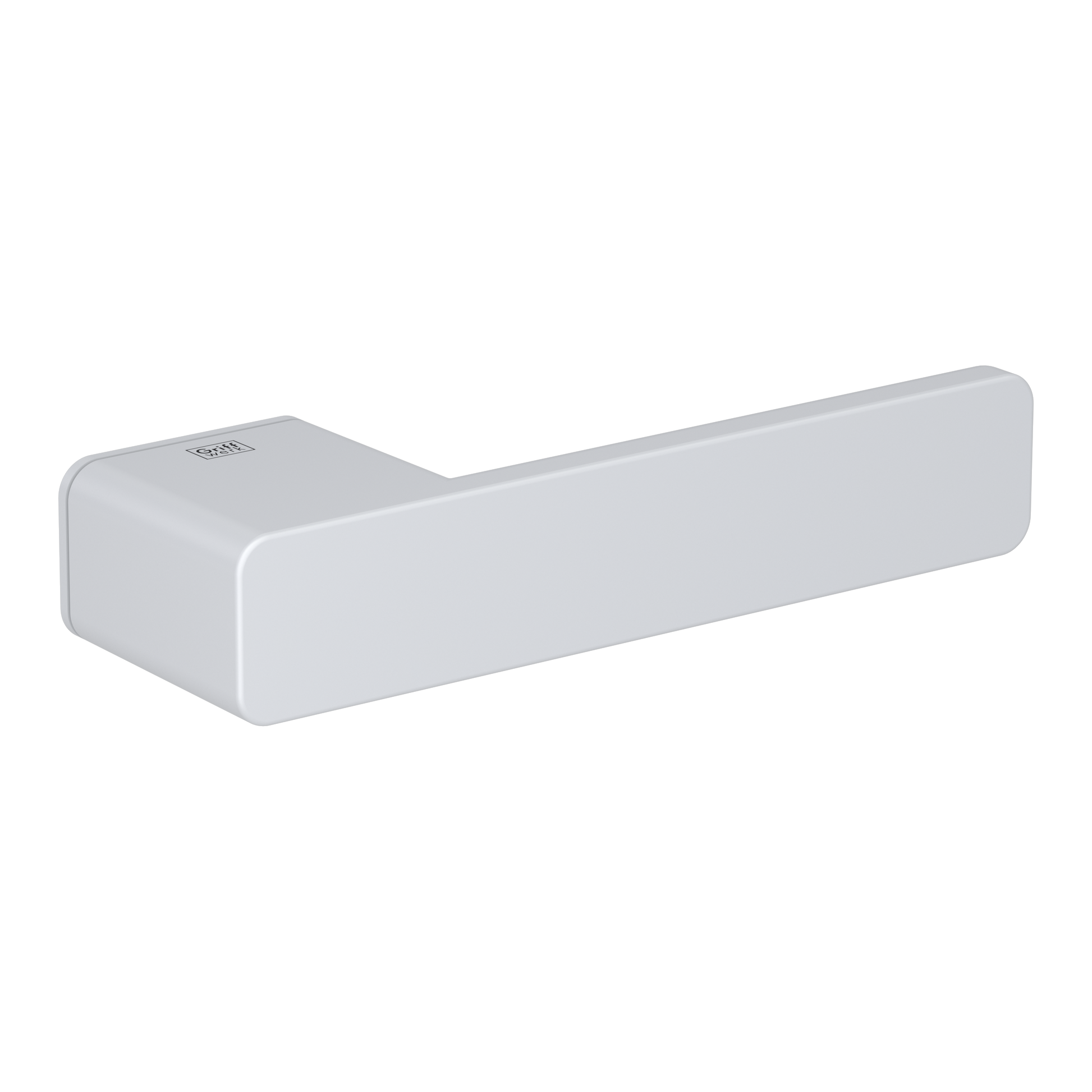

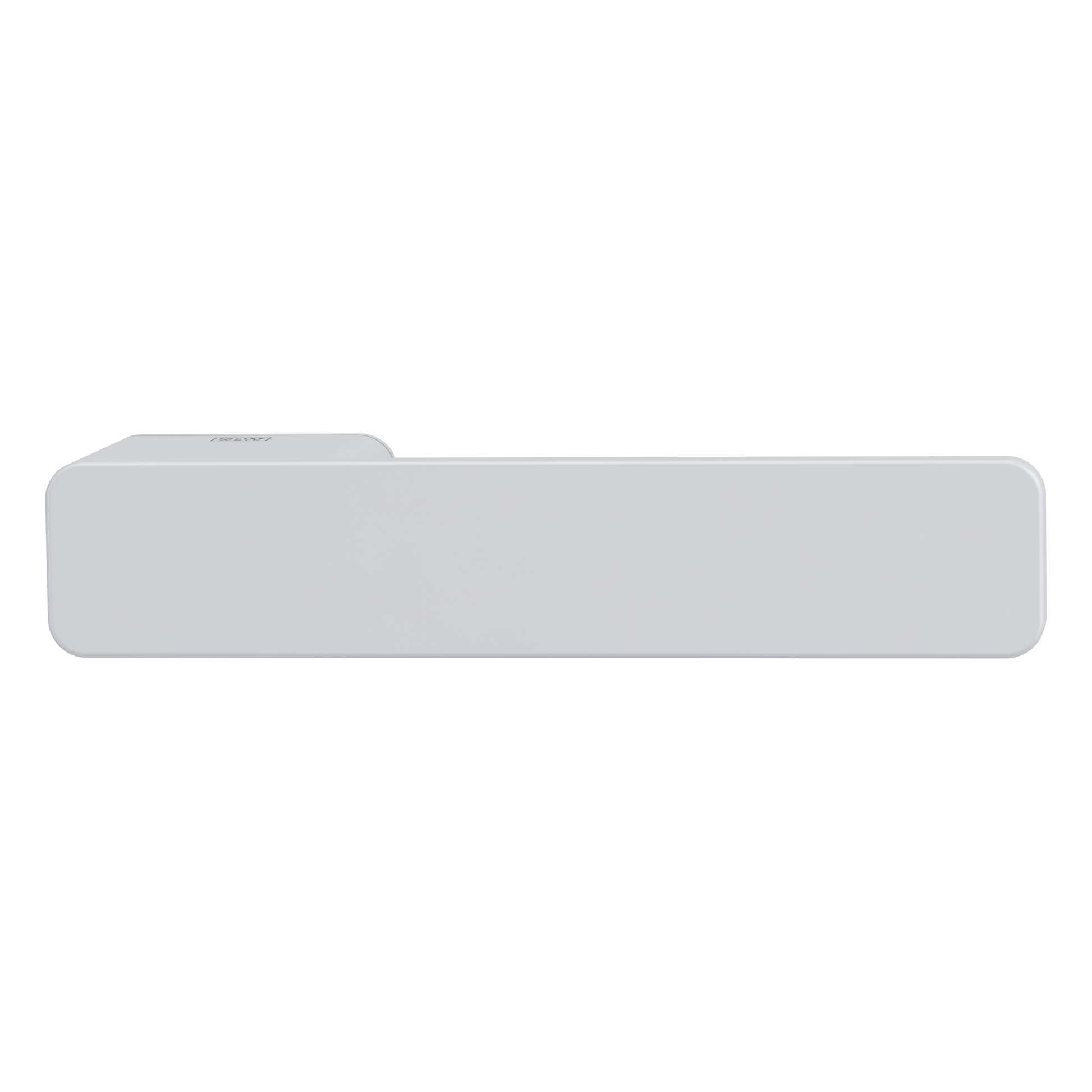

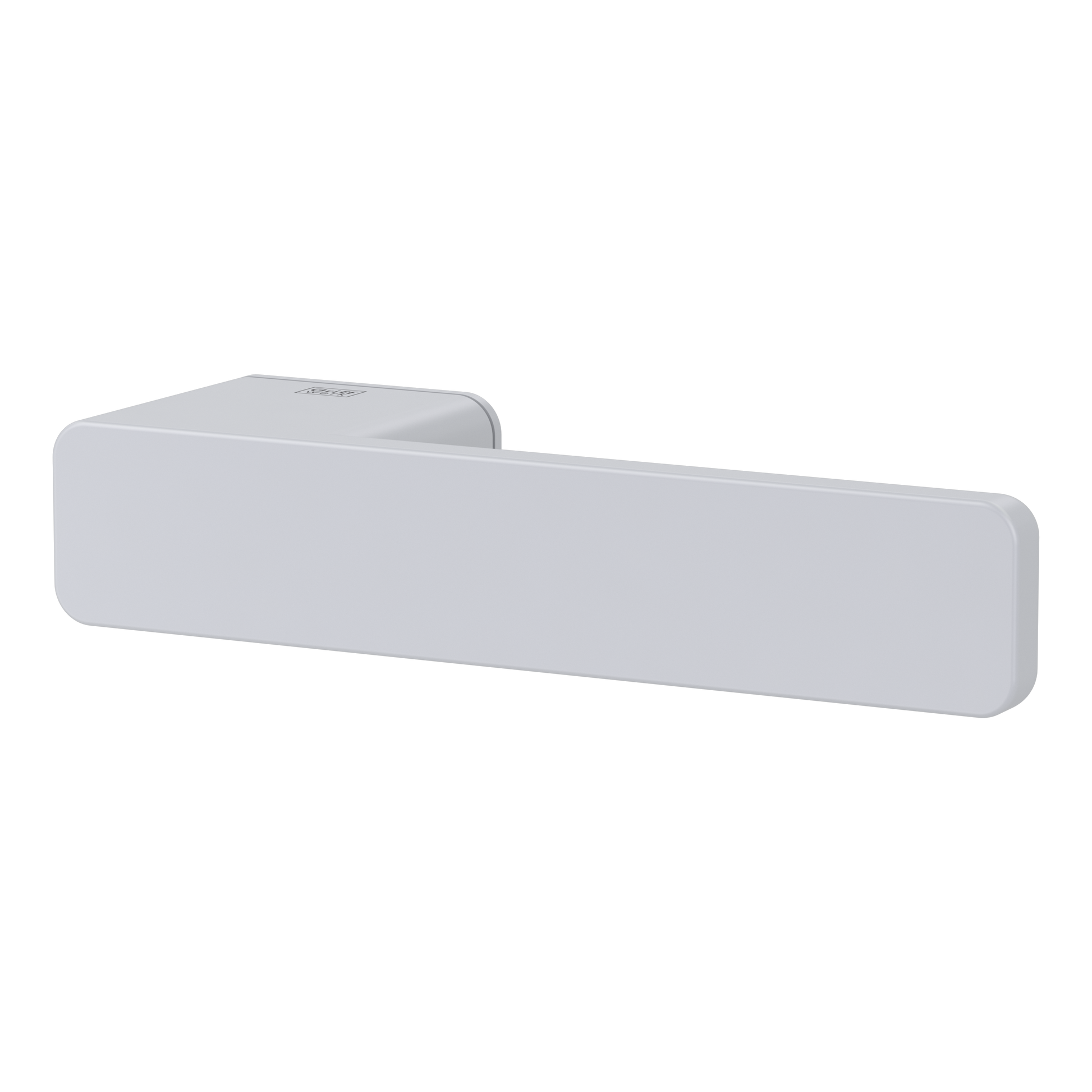

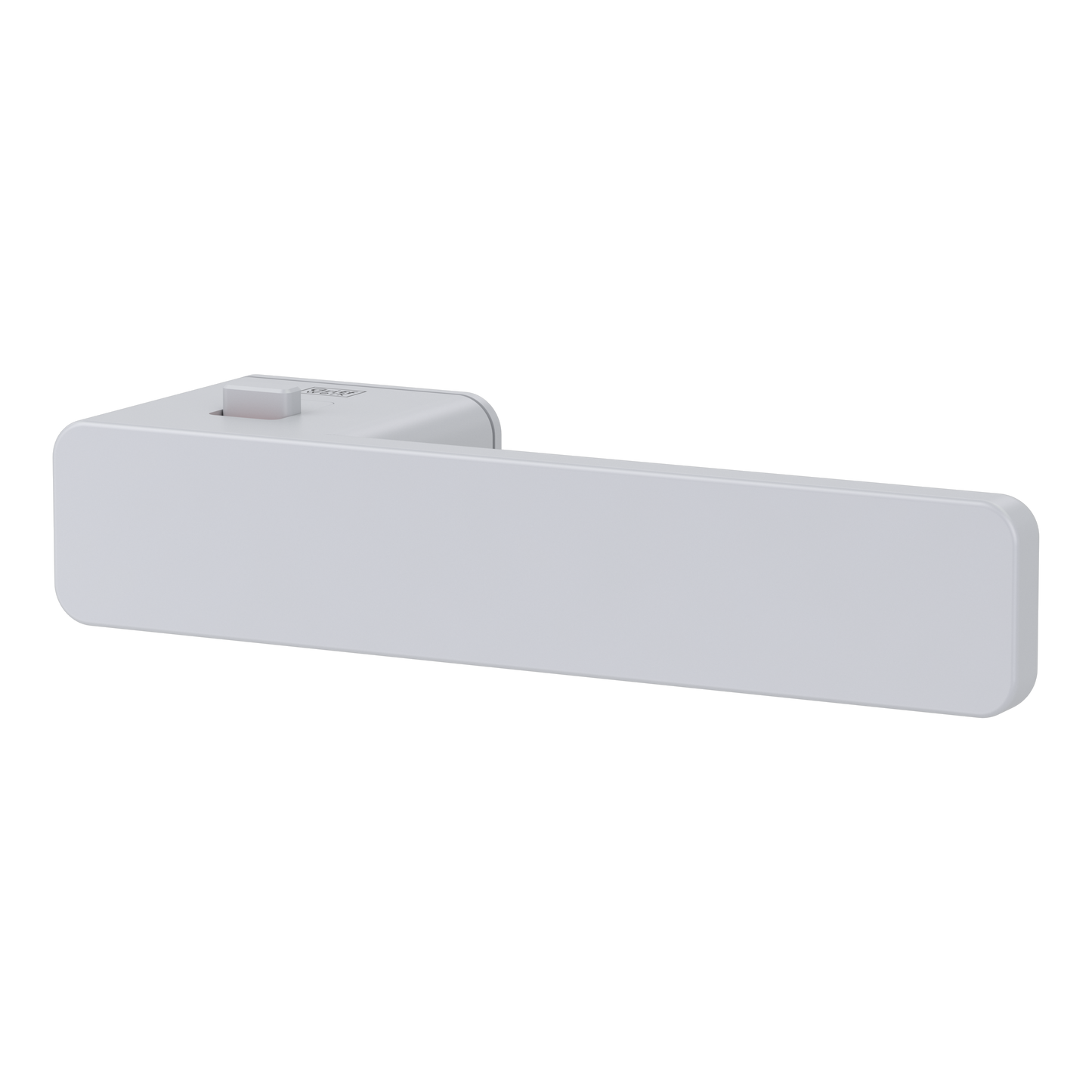

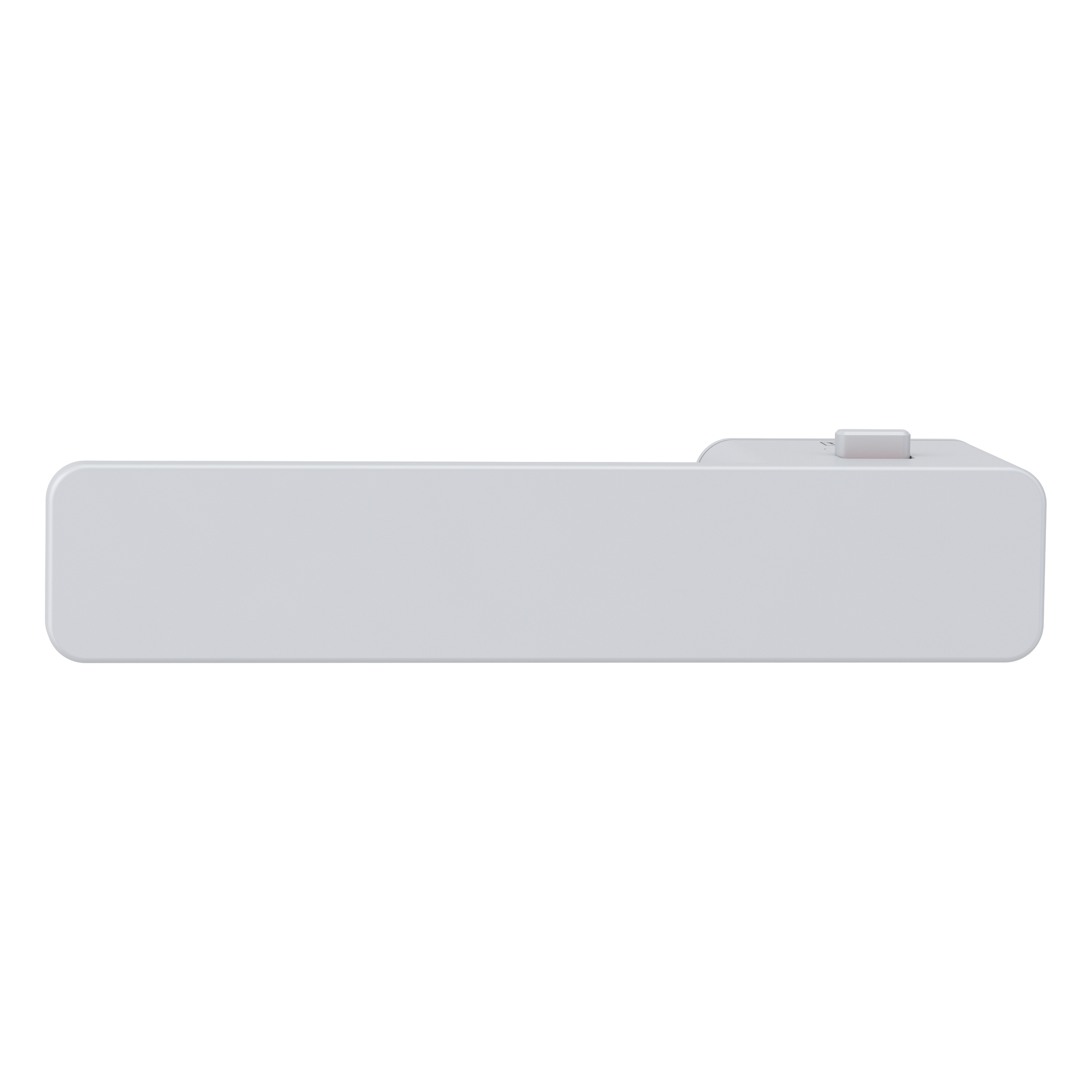

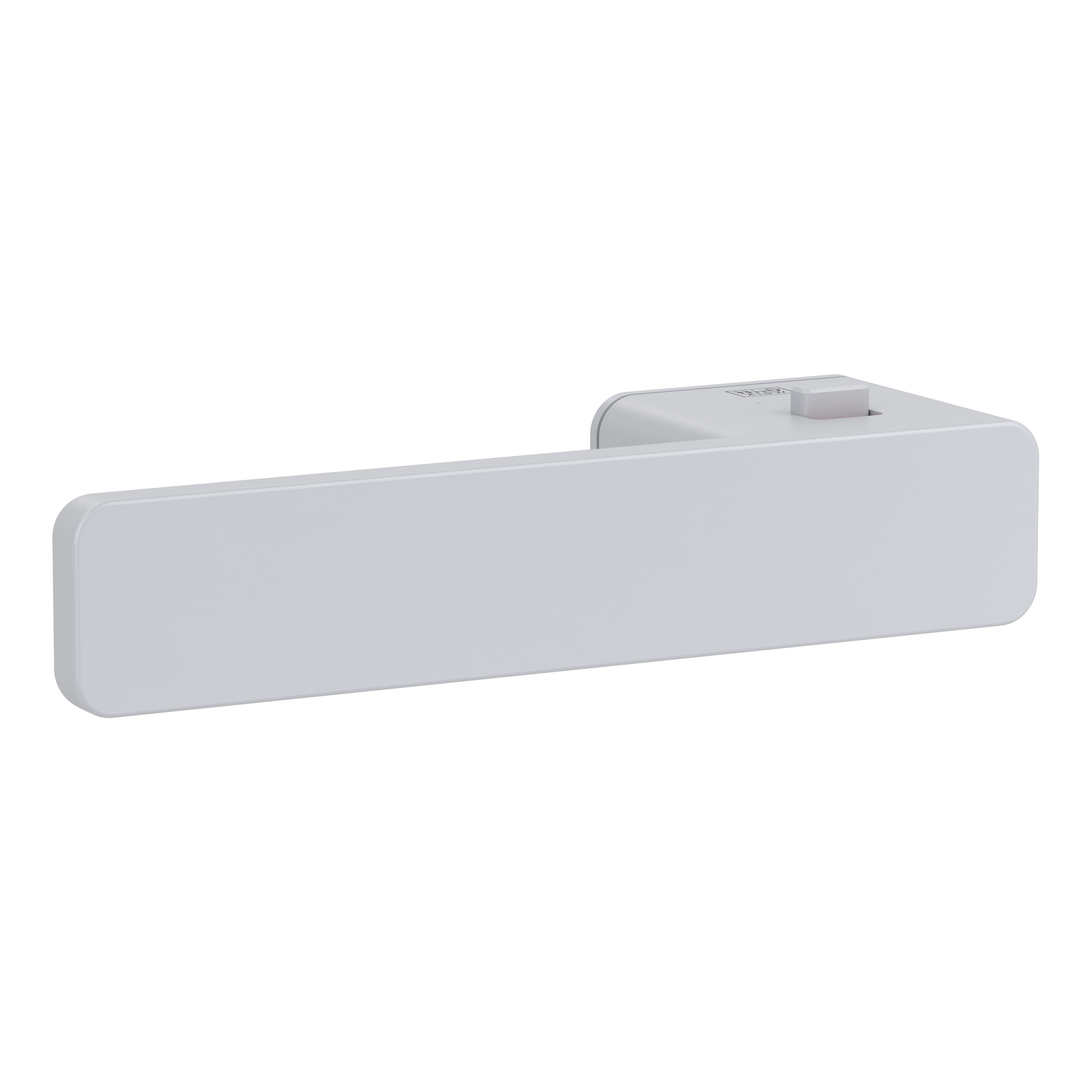

R8 ONE in silk white

JUST ONE - DESIGN CONCEPT WITHOUT ROSETTES

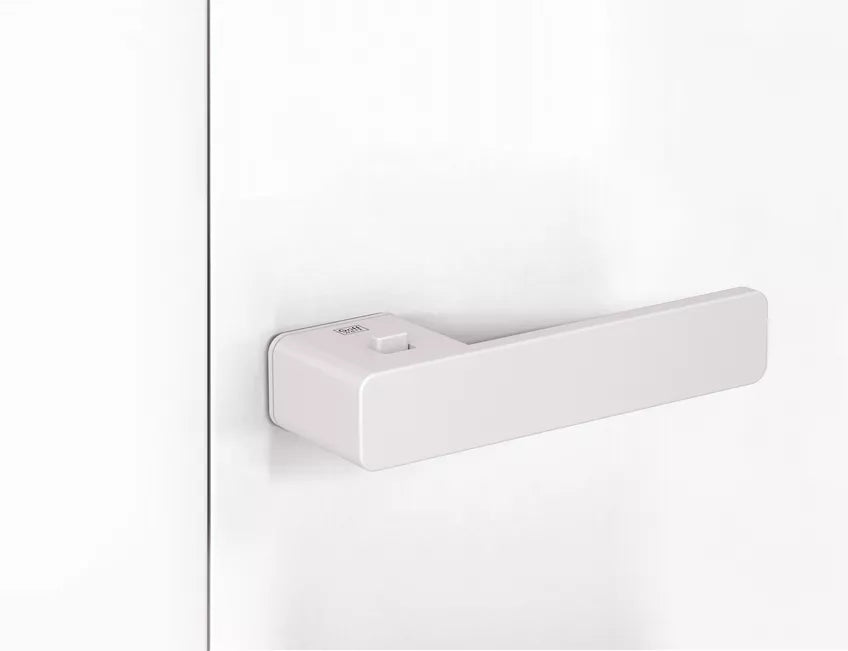

ONE stands for maximum reduction and is the programmatic intent for this design line. The R8 ONE door handle has no rosettes at all. Thanks to specially developed technology, the handle now sits singularly on the door leaf. It still fits on doors with standard locks. In the version with locking mechanism, this technology has been integrated into the handle neck and is thus positioned within thumb reach. A handle design for the highest demands in two form variants.

• Lever handle one-sided swivel-mounted on concealed rose with
  integrated retaining mechanism

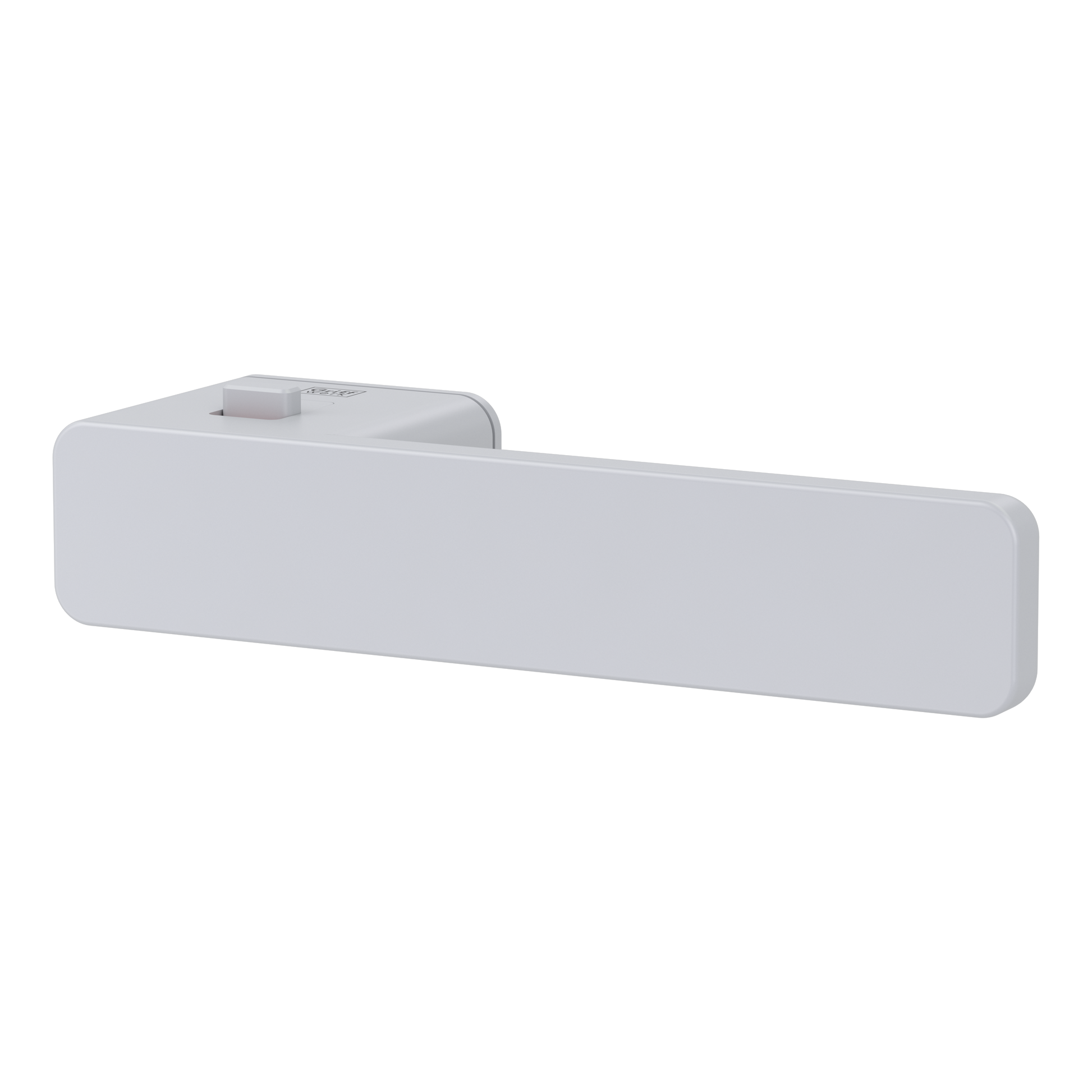

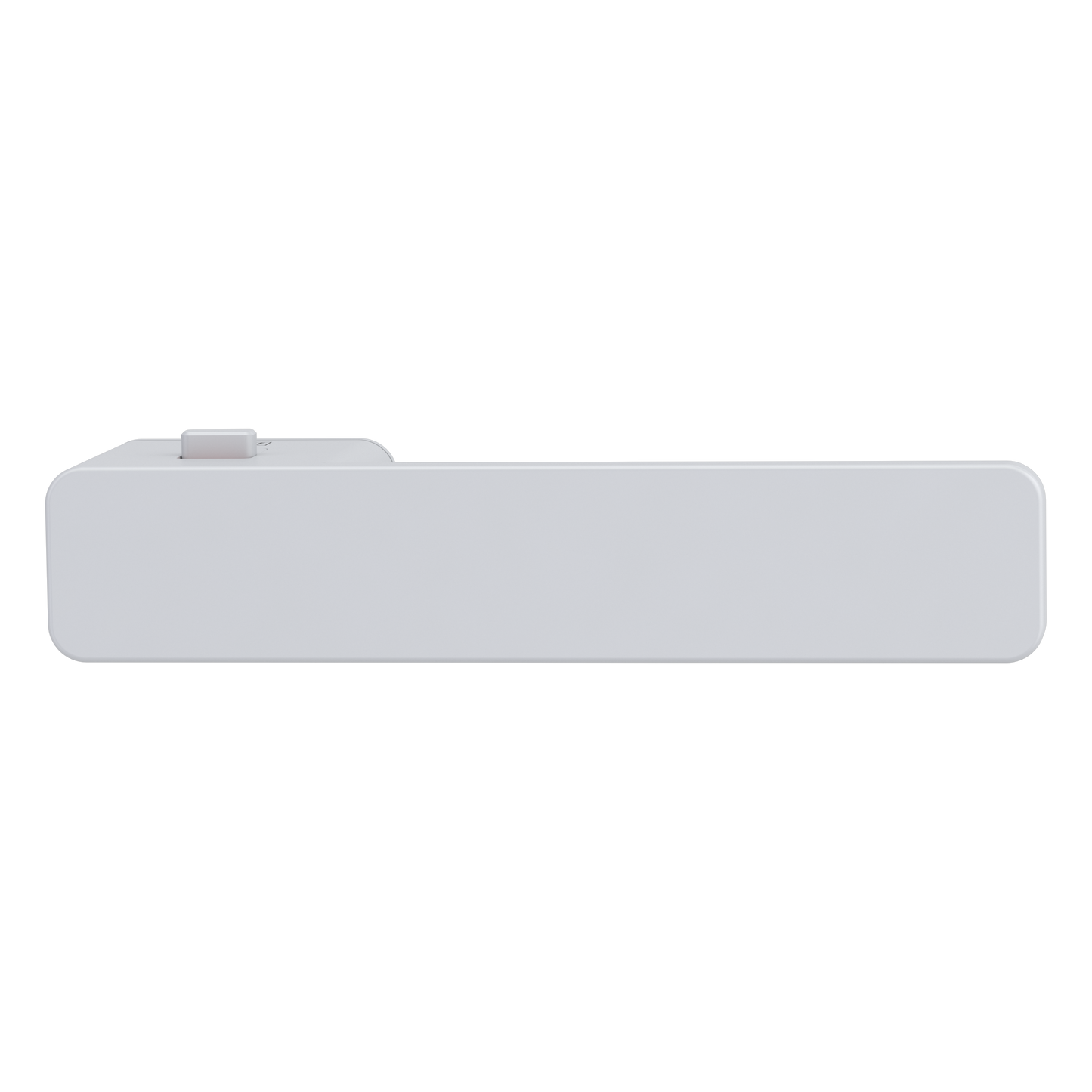

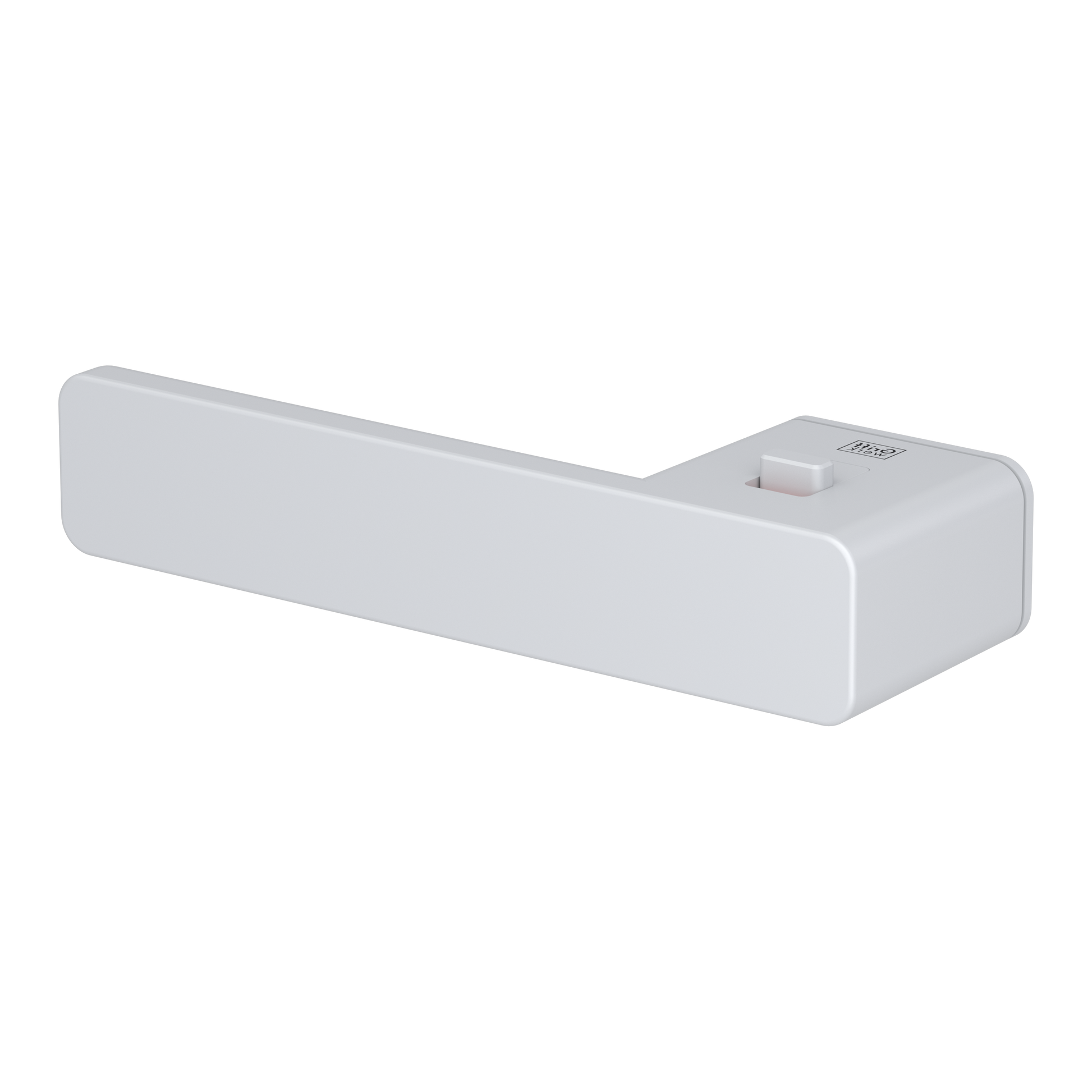

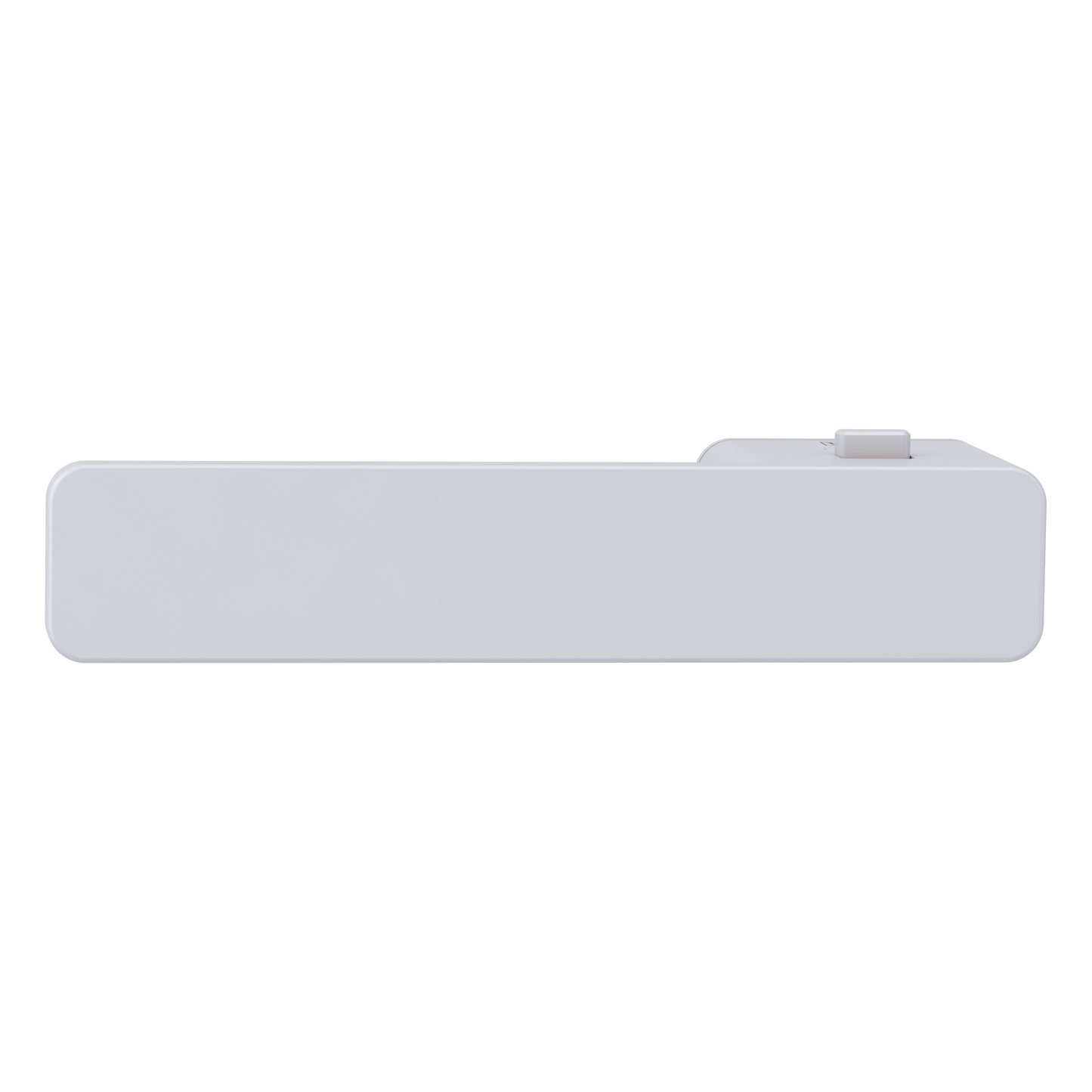

• In the handle integrated one-sided locking mechanism with emergency release, usable with standard mortise lock
• Slide bearing for durable, smooth, silent and maintenance-free operation
• One-sided attached with M4 screws
• Concealed grub screw inserted from below and secured with thread lock
• 8mm square spindle
• Built-in lever handle with no visible screws/fixing or removal
  holes in the visible surface
• Grip inclination adjustable
• For standard door thickness:
  38-45mm (1 1/2"-1 3/4")
• Doors possible up to a door thickness of 75mm (3") with extension sets

• Product Datasheet
